Arducam High Quality Camera, 12.3MP 1/2.3" 477P HQ Camera Module with 6mm CS-Mount Lens for NVIDIA® Jetson Nano/Xavier NX/AGX Orin/Orin Nano/Orin NX











貼心提醒



原廠進口

https://www.arducam.com/docs/camera-for-jetson-nano/native-jetson-cameras-imx219-imx477/imx477-how-to-install-the-driver/

https://www.uctronics.com/download/Amazon/B0249_IMX477_HQ_Camera_for_Jetson_Datasheet.pdf

This camera can not be used on AGX Xavier at present.



產品特色

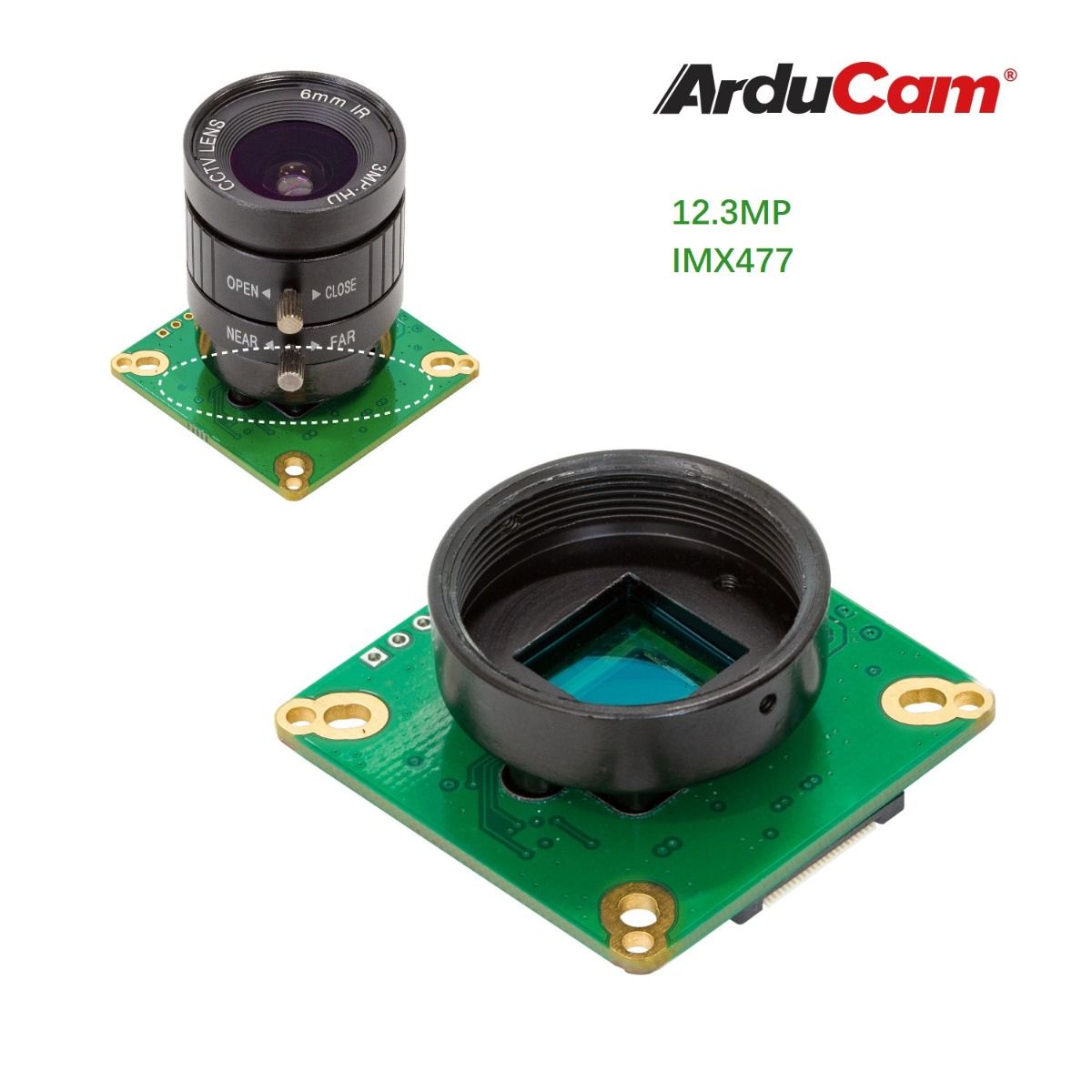

Camera

Sensor: IMX477

Optical Format: 1/2.3" (diagonal 7.857mm)

Resolution: 4056(H) x 3040(V) 12.3MP

Pixel Size: 1.55um x 1.55um

IR Sensitivity: Visible light

Interface: 4-lane MIPI CSI-2

Default Lens Mount: CS-Mount

Frame Rate: Due to Jetson Xavier NX/Nano hardware only supports 4K@30fps h.264/h.265 encoding, you cannot use it for 4K@60fps.

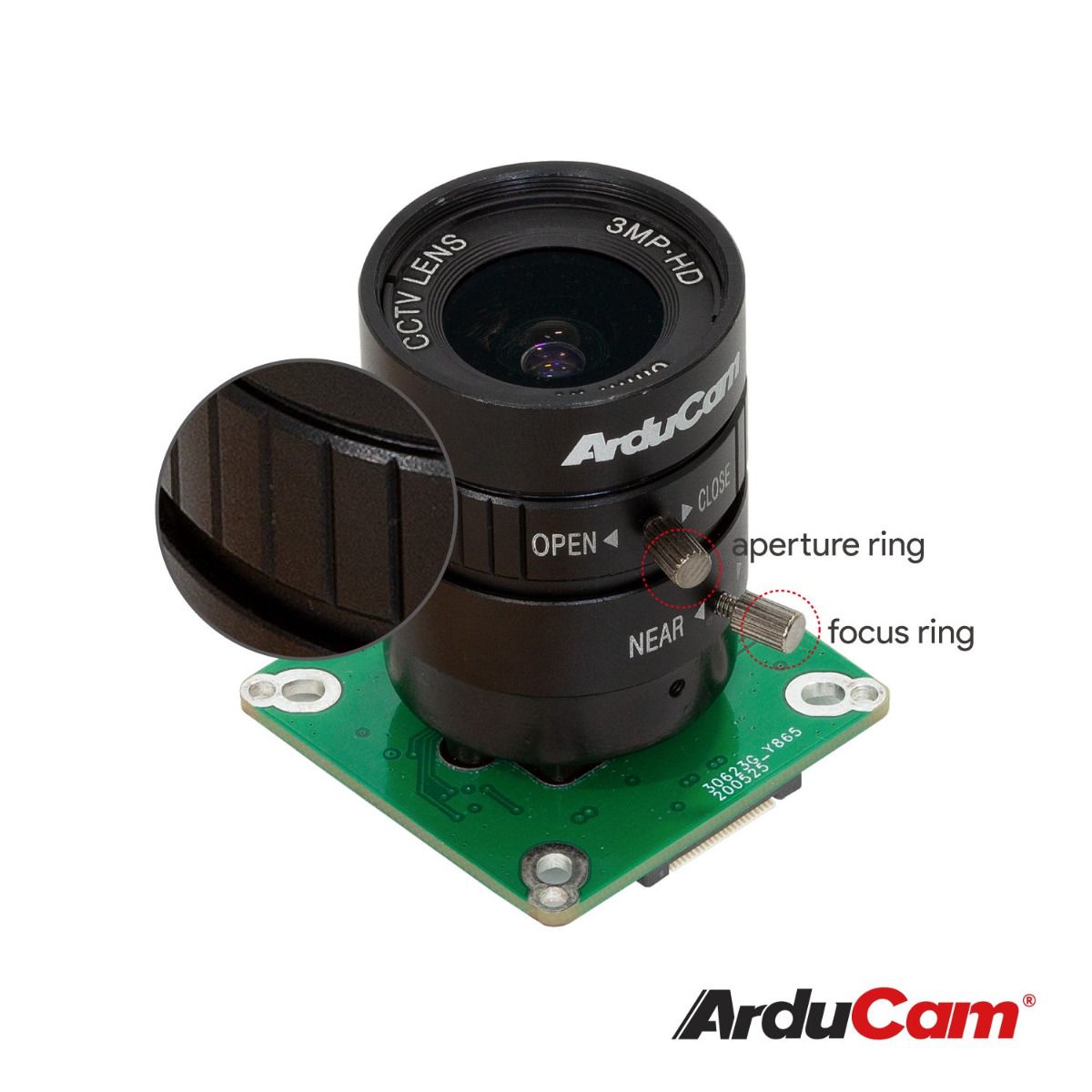

Lens

Format: 1/2.3 inch

Focal Length: 6mm

Aperture (F): Max. F1.2

Field of View (FOV): 65° (H)

Mount: CS-Mount

Back Focal Length: 7.53mm

MOD: 0.2m

Dimension: Φ30×31mm

Weight: 53g

Camera board

Board Size: 38mm×38mm

Hole Pitch: Compatible with 29mm, 30mm, 34mm





















產品規格

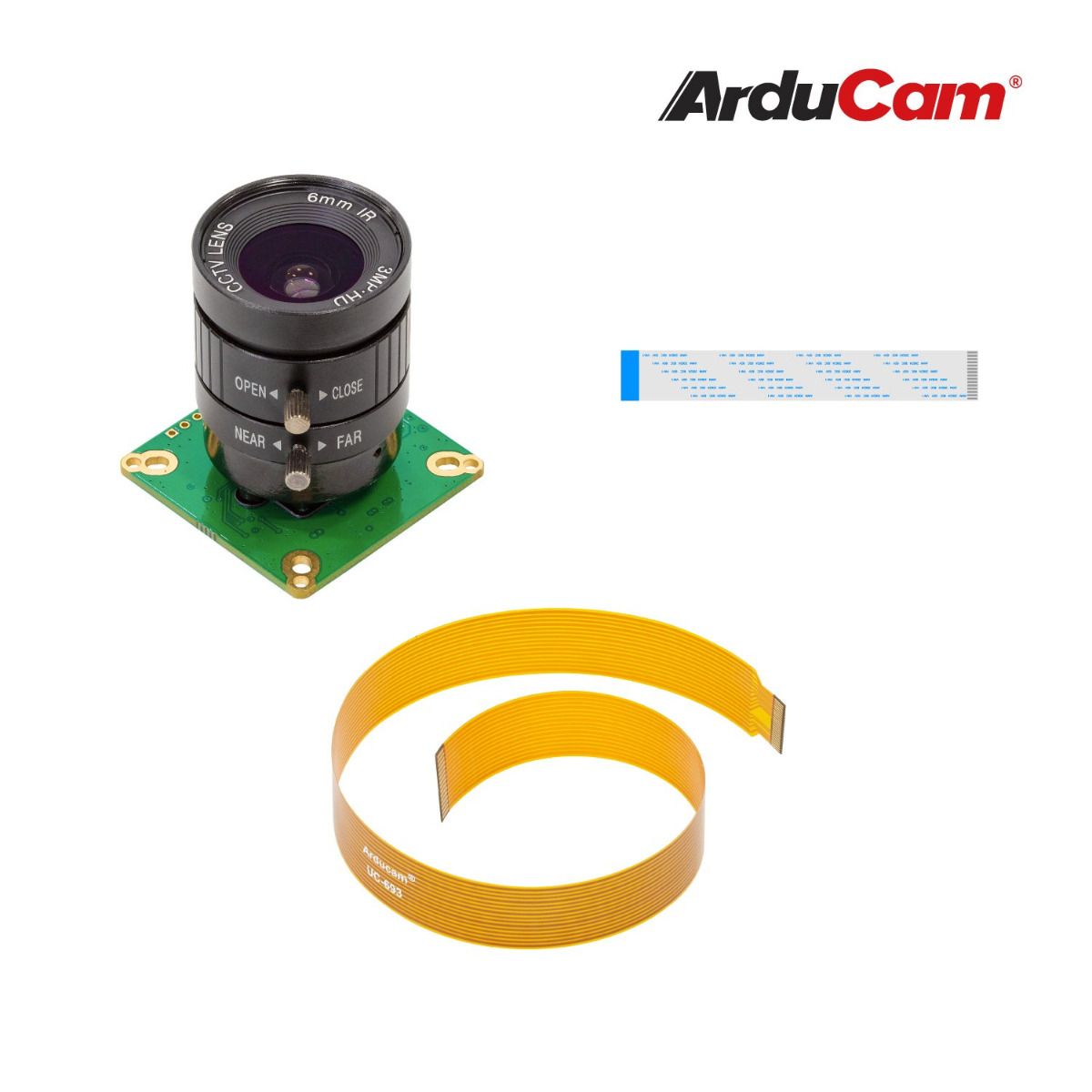

1 pcs 12.3MP color camera module

1 pcs 6mm focal length CS-mount camera lens

1 pcs 300mm/11.8inch 15pin to 22pin camera cable

1 pcs 300mm/11.8inch 22pin to 22pin camera cable

B0249
